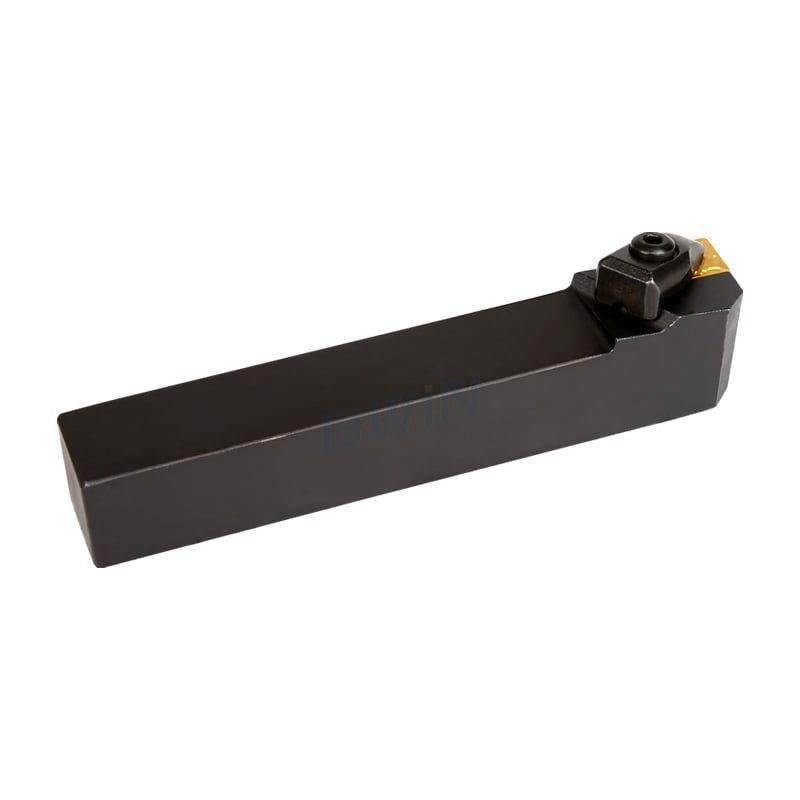

Yang DCLNR2020K12 is a high-performance external turning tool holder designed for use with C-type carbide inserts (80° diamond shape), such as CNMG inserts. It is widely used in CNC and conventional turning operations for medium to heavy-duty cutting of external diameters, facing, and profiling applications.
Spesifikasi Utama:
- Tool Holder Code: DCLNR2020K12
- Tool Type: External Turning Tool Holder (Right-Hand)
- Insert Compatibility: CNMG (80° diamond-shaped inserts)
- Shank Size: 20 × 20 mm (Square Shank)
- Insert Size: 12 (Indicating the insert cutting edge length)
- Approach Angle: 95°
- Clamp Mechanism:
- Secure top clamp dan lever lock system for rigid insert retention.
- ISO Standard: Designed in accordance with ISO 5608 standards.
Fitur dan Manfaat:
- Rigid Construction:
- Made from high-strength alloy steel, providing excellent rigidity and vibration resistance during heavy cutting.
- Insert Compatibility:
- Dirancang untuk CNMG inserts, which offer 4 cutting edges, improving cost efficiency and productivity.
- Approach Angle:
- The 95° approach angle allows for effective clearance during external turning and ensures smooth chip evacuation.
- Secure Clamping System:
- Incorporates a reliable top clamp dan screw lock system to hold the insert securely, ensuring stability during high-load machining.
- Fleksibilitas:
- Suitable for operations like external turning, facing, and profiling in a variety of materials, including steel, stainless steel, and cast iron.
- Precision and Performance:
- Ensures consistent machining accuracy, excellent surface finishes, and extended tool life.
- Shank Size:
- Compact 20 mm × 20 mm shank size provides compatibility with most CNC and manual lathes.
- Insert Size Flexibility:
- Compatible with CNMG12 inserts, ideal for a range of cutting depths and feed rates.
Aplikasi:
- External Turning: Precision machining of outer diameters.
- Facing Operations: Smooth and accurate end-face finishing.
- Profiling: Contouring operations on cylindrical components.
- Heavy-Duty Machining: Suitable for high-feed, large-depth cutting tasks.
Sektor industri:
- Manufaktur otomotif
- Aerospace industry
- Teknik umum
- Heavy equipment machining
Yang DCLNR2020K12 tool holder, paired with CNMG inserts, provides superior performance, stability, and cost-effectiveness in demanding machining operations, making it an essential choice for precision turning tasks.
