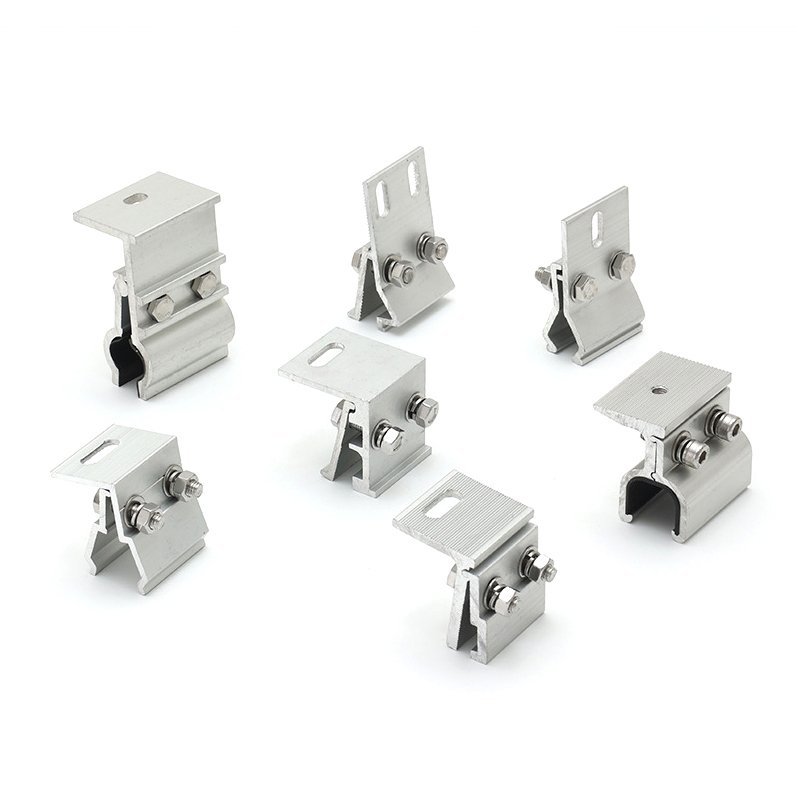

Solar Panel Mounting Bracket
– High-Strength Structural Support for PV Systems
El Solar Panel Mounting Bracket, a robust structural component designed to securely support and position photovoltaic (PV) modules on rooftops or ground-mounted systems. Engineered for durability and precision, this bracket ensures stable load distribution, accurate alignment, and long-term reliability under demanding environmental conditions.
Fabricado con high-grade aluminum alloy (6061/6063) or stainless steel (SUS304/SUS316), the bracket offers excellent corrosion resistance, mechanical strength, and lightweight performance. Its versatile design allows for flexible installation across different roof types and mounting configurations, making it suitable for both residential and commercial solar projects.
With customizable dimensions and configurations, this mounting bracket can be tailored to meet specific structural and installation requirements.
Características principales
- High Load-Bearing Capacity: Supports wind, snow, and dynamic loads
- Corrosion Resistant Materials: Ideal for long-term outdoor exposure
- Flexible Installation Design: Compatible with various roof types and systems
- Precision Alignment: Ensures accurate positioning of solar panels
- Durable & Lightweight: Optimized for easy handling and long service life
- Customizable Structure: Adaptable to project-specific requirements
Aplicaciones
- Residential rooftop solar installations
- Commercial and industrial PV systems
- Ground-mounted solar arrays
- Metal roof, tile roof, and flat roof structures
- Renewable energy infrastructure projects
Proceso de fabricación

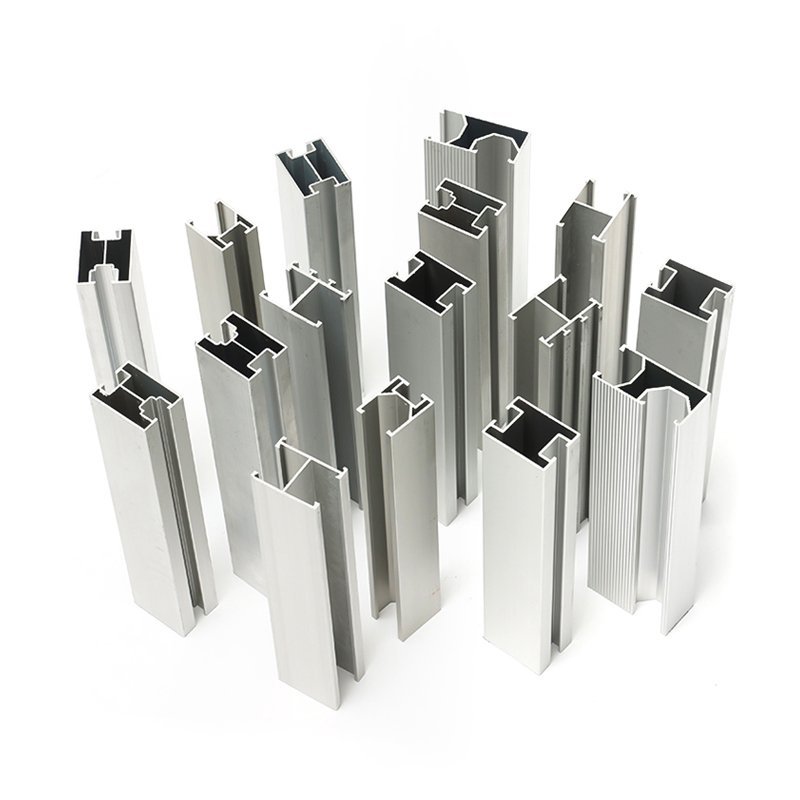

- Aluminum Extrusion (for structural profiles, if applicable)
- CNC Machining (precision milling, drilling, and slotting)
- Laser Cutting (for sheet metal components)
- CNC Bending/Forming (for bracket shaping)
- Thread Tapping (for fastening interfaces)
- Welding (if multi-part assembly is required)
- Surface Treatment (anodizing for aluminum, passivation for stainless steel)
- Deburring & Finishing (smooth edges and surface quality)
- Final Inspection (dimensional accuracy and load verification)
Tolerance & Dimensions
- Thickness Tolerance: ±0.05–0.10 mm
- Hole Position Tolerance: ±0.05 mm
- Angle Tolerance: ±0.5°
- Flatness: ≤0.3–0.5 mm
- Surface Roughness: Ra ≤ 1.6–3.2 μm
- General Dimensional Tolerance: ±0.05–0.10 mm
OEM / ODM Manufacturing Capability
As a professional OEM/ODM manufacturer, we specialize in precision metal fabrication for solar mounting systems. With advanced CNC machining, extrusion, and forming capabilities, we deliver customized bracket solutions tailored to your structural and environmental requirements.
- Custom dimensions, shapes, and structural designs
- Compatibility with various rail and clamp systems
- Material selection for different climates and load conditions
- Surface finishing options (anodizing, coating, passivation)
- Logo engraving and private labeling
- Rapid prototyping and scalable production
If you are sourcing a “Solar Panel Mounting Bracket”, PV mounting bracket, solar roof bracket, aluminum solar bracket, photovoltaic support structure, solar installation hardware OEM,we offer reliable, precision-engineered solutions tailored to your market. Contáctanos Ahora, para personalizaciones OEM, muestras o presupuestos para pedidos al por mayor.
